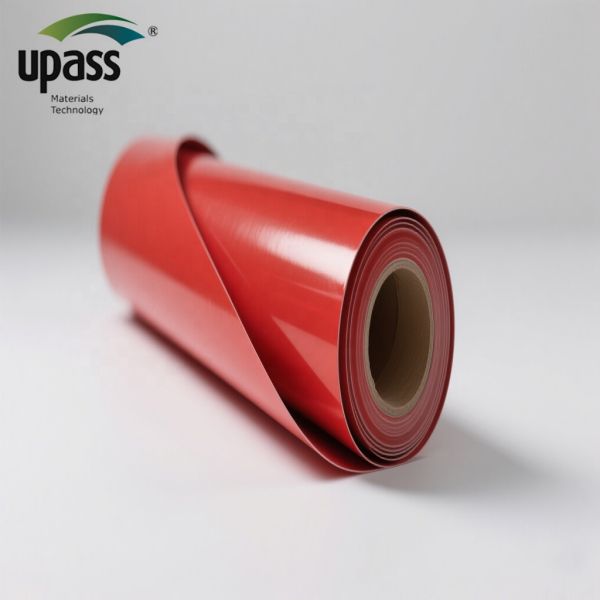

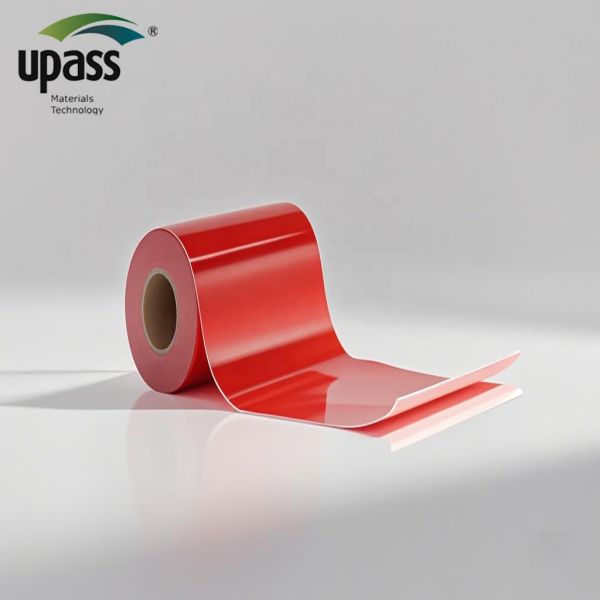

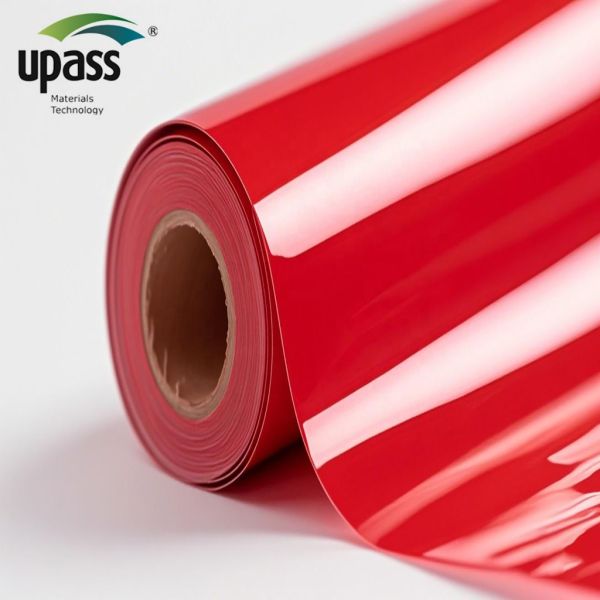

Double Sided UV Curing Silicone Coated Release Liner with High Subsequent Adhesion and Customizable Width HDPE Film Roll

Name: Double Sided UV Curing Silicone Coated Release Liner with High Subsequent Adhesion and Customizable Width HDPE Film Roll
Brand: Upass
Price: 1 USD

Buy cheap Double Sided UV Curing Silicone Coated Release Liner with High Subsequent Adhesion and Customizable Width HDPE Film Roll product

Certificate : ISO9001:2018

Material : High Density Polyethylene (HDPE)

Product name : Double Sided Silicone Coated Red Release Liner For Foam Tapes

Printing : Customized Printed

Processing Service : Cutting

Thickness : 0.07mm-0.15mm

Plastic Modling Type : Blow Molding

Sample : Free(freight Charge)

Width : 100-1100mm

Performance : Double Sided Silicone Coated(UV Curing)

Model Number : Silicone Coated Release Liner

Brand Name : Upass

Place of Origin : Shanghai, China

MOQ : 50000

Inner Core Size : 76mm

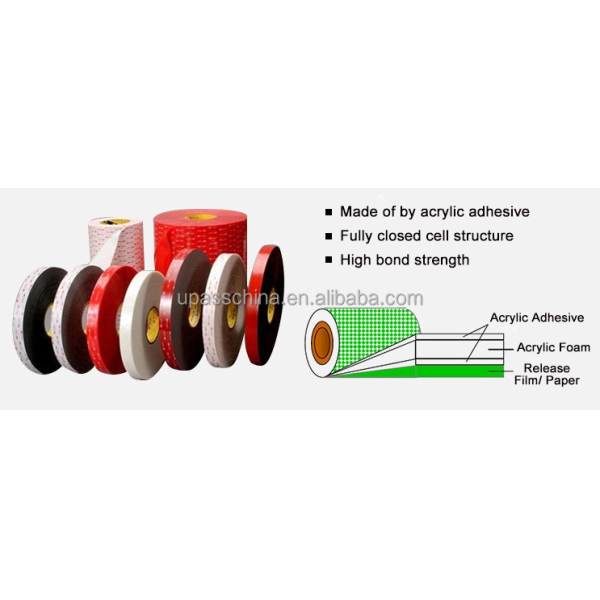

Application : Used for foam tapes, acrylic tapes, DS tapes

Contact Now

Product Description

Silicone-coated PE (Polyethylene) and HDPE (High-Density Polyethylene) plastic films are advanced composite materials that combine the mechanical strength of polyethylene with the superior non-stick and chemical-resistant properties of silicone. These films are widely used in industries requiring high-performance, durable, and cost-effective solutions.

Key Features

Excellent Non-Stick Surface – Low surface energy ensures easy release and anti-adhesion properties.
High & Low Temperature Resistance – Stable performance, suitable for heat sealing, sterilization, and baking applications.
Chemical & Moisture Resistance – Resists oils, acids, solvents, and water, making it ideal for harsh environments.
Customizable Options – Available with anti-static, UV-resistant, or flame-retardant additives.
Eco-Friendly & Cost-Effective – More affordable than PTFE-coated films, with some recyclable options.

Manufacturing Process

Base Material: PE (flexible, low-temperature resistant) or HDPE (higher rigidity, chemical resistance).
Coating Method: Plasma-treated or primed for strong adhesion, applied via dip, spray, or roller coating .

Applications of Silicone-Coated PE/HDPE Films

1. Industrial & Manufacturing

Release Liners – Used in label backing, adhesive tapes, and composite molding (consistent peel force).
Composite Material Demolding – Replaces traditional mold release agents in carbon fiber, FRP, and rubber production.

2. Food Packaging & Baking

Non-Stick Baking Mats – Reusable, replaces parchment paper.
Grease-Resistant Food Wrapping – Prevents oil leakage in fast-food and frozen food packaging.

3. Medical & Specialty Uses

Medical Adhesive Backing – Hypoallergenic, breathable films for wound dressings and surgical drapes.
Solar Panel Backsheets – HDPE-based silicone films enhance weather resistance in photovoltaic modules.

4. Emerging Technologies

Flexible Electronics – Acts as an insulating substrate for bendable circuits.
3D Printing Build Plates – Ensures easy model removal with heat-resistant non-stick properties.

Product Name	Double Sided Silicone Coated Red Release Liner For Foam Tapes
Material	HDPE
Function	(1) Different Release Force; (2) High Subsequent Adhesion: More than 90%; (3) UV Curing.
Package	Bubble film + tray

Thickness: 0.07-0.15mm
Width: 110-1100(Other can be customized)
Application: Foam Tapes, Acrylic Tapes
Curing Type: Double sides UV Curing
Release Force: 5-10g/10-20g
Subsequent Adhesion: More than 90%

UV Curing Red Silicone Coated Release Liner For Foam Tapes, it is a two-sided release liner,
double sides are UV curing, the subsequent adhesion are more than 90%, it is special design for HM adhesive or acrylic adhesive double side foam tape.
